Piles and Grade Beams

Piles can be thought of long and slender structural members (or columns) placed in the ground below the supported structure. Corrugated sheets of steel are also called piles but they are not considered here. Piles are often used in construction where the bearing capacity of the surface soil is poor. They are made of concrete, steel, timber, or a combination of these. They may be driven, vibrated, drilled or pounded into the soil. Drilled piers or auger-cast piles may be grouted or cast in place. Drilled piers consist of a hole drilled in the ground and filled with grout. When the water table or loose soils are present, auger cast piles may use a drill bit to pressure inject grout as the bit is slowly removed. A cylindrical steel reinforcement ‘cage’ is often used to reinforce concrete piles.

Piles may support loads directly or be used to compact soil intended to support construction. Piles that support vertical loads directly support those loads primarily through end bearing and friction along the side of the pile. End bearing piles rest directly on a stronger soil or rock layer. The bottom of a drilled pier is sometimes flared out to increase its end bearing capacity. Friction piles rely on the friction between the side of the pile and the surrounding soil. A pile may rely on both mechanisms of support. The soil surrounding the length of the pile also acts as a horizontal brace which helps to prevent buckling of the pile.

Piles are often used to directly support grade beams. Concrete grade beams span between the tops of the supporting piles at or just below ground level. In expansive soils, or clay, the bottom of the grade beams can be isolated from the soil to prevent upheaval damage to the beam. In cohesionless soils, or sand, the beams are generally placed directly on, and even formed by, the sandy soil. Grade beams are usually provided with top and bottom continuous reinforcement steel and stirrups. The grade beams support load bearing walls and columns, and the first floor structure, excluding concrete slabs on grade. The first floor structure may be wood framed, placed as a structural concrete slab (requiring no soil support) or as a concrete slab (bearing) on grade.

In heavier construction, the tops of several piles placed relatively close together are sometimes covered with a pile cap. Pile caps are square or rectangular concrete pads. Columns, but sometimes walls, are erected over the top of the pile cap. A pile cap is similar in shape to an isolated footing, but different in that the load on the cap is distributed to piles rather than as a pressure applied to the soil beneath the pile cap. Pile caps are usually not used for single family home construction.

Pin piles are steel pipes or solid members often used to repair or strengthen a foundation having problems such as settlement. The pin piles are driven into the earth at regular intervals immediately adjacent the existing foundation, and then attached to this foundation. Helical anchors are similar, but screwed into the ground. In this way, the existing foundation is stabilized by the additional capacity added by the pin piles or helical anchors.

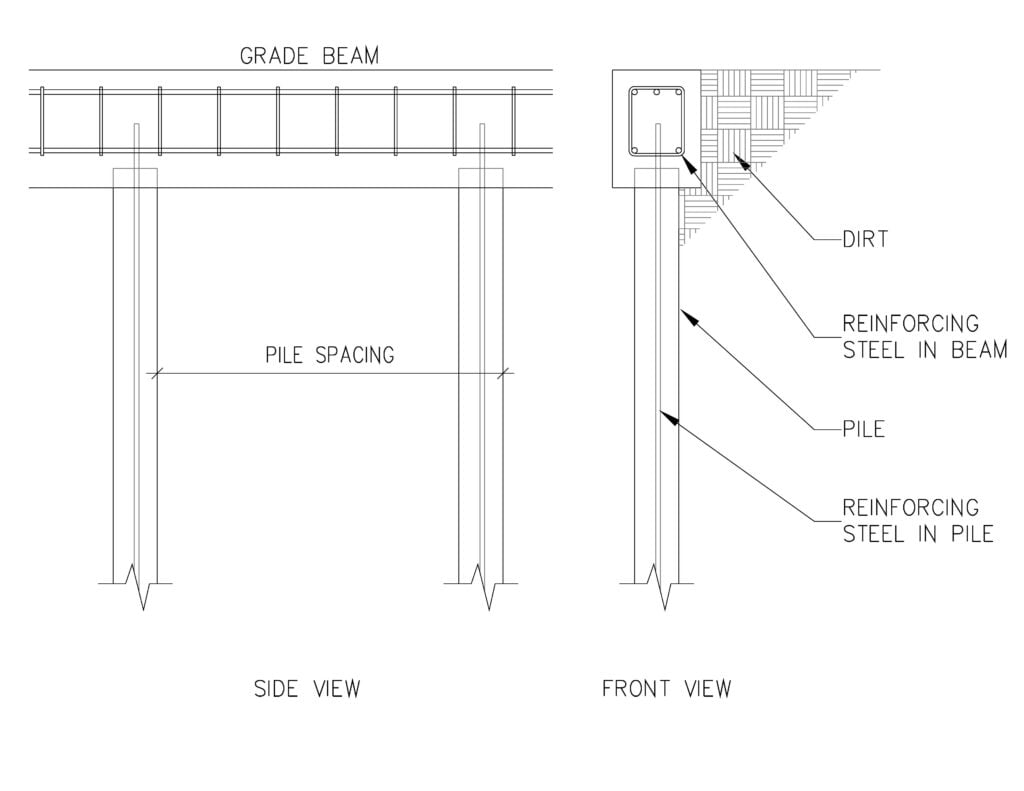

The following is a simple sketch of a grade beam supported by piles spaced at intervals:

ADDITIONAL RESOURCES:

ACI 318 – Building Code Requirements for Structural Concrete

ACI 543R – Design, Manufacture, and Installation of Concrete Piles

Timber Pile Design and Construction Manual

AWPA Standards
